Genie Z-62 Trax

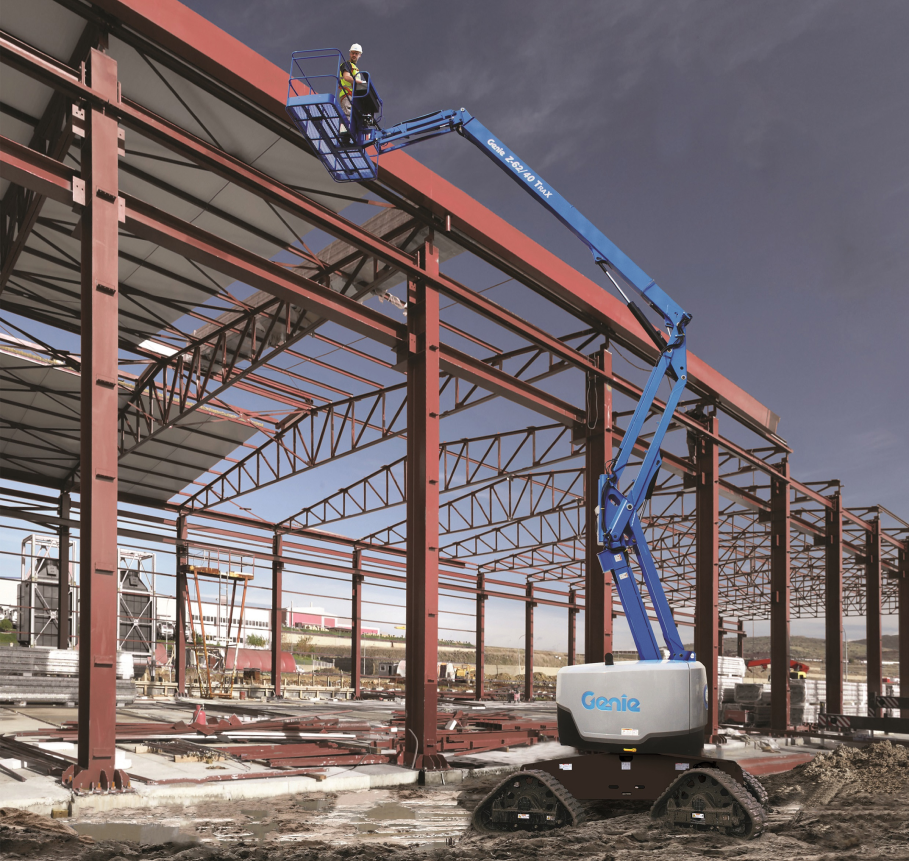

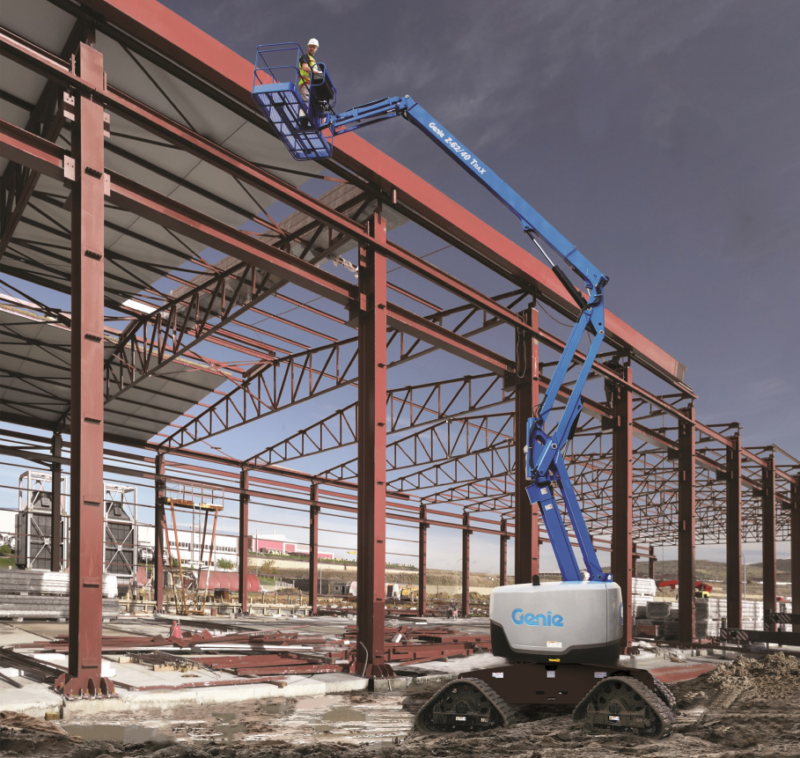

Z-62/40 TraX
Ideally suited for outdoor construction and industrial applications, Genie Z-62/40 TraX self-propelled boom lifts combibe lifting versatility, overhead and overhanging
positioning capabilities, and unmatched reach. Four-wheel steer and the unique Genie TraX™ track drive system are available with four triangular tracks, self-propelled at each corner of the machine.
Presentation:
- Permanent active oscillating axle to maintain grip on rough terrain
- 4×4 with 45% gradeability for superior maneuverability
- Fully proportional dual parallelogram controls for precise boom positioning and smooth performance
- 1.52 m articulated pendulum with 135° vertical travel for precise positioning of operators
- Genie Fast Mast™ system allows operators to lower the basket, unload materials and return to working height in the blink of an eye
- Four-wheel steering and unique optional Genie TraX™ track drive system with four triangular, autonomous tracks at each corner of the machine.
Specification:
Max. working height: 67 ft 11 in | 20.87 m
Max horizontal reach: 40 ft 9 in | 12.42 m
Max. articulation height (conveyor extended): 25 ft 7 in | 7.8 m
Platform capacity: 500 lbs | 227 kg
